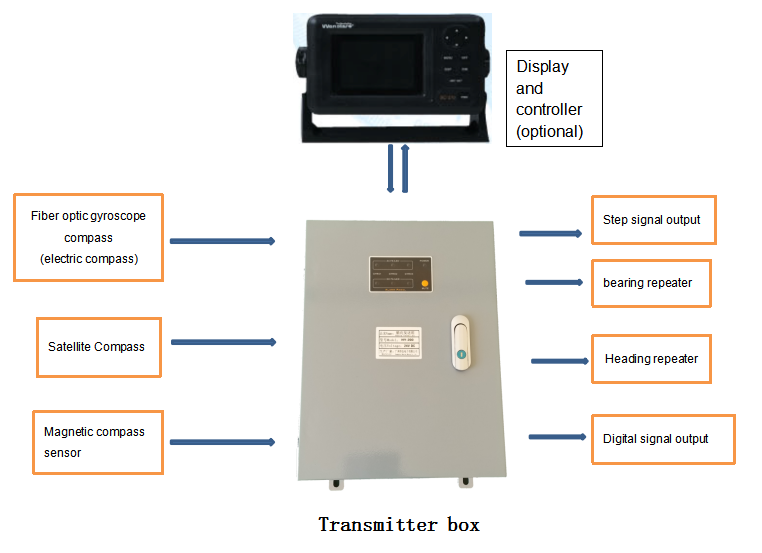

HY-200 heading transmit box is a Intelligent heading transmit equipment. It can be used with any compass, satellite compass, electromagnetic compass and magnetic compass sensor.
Transmit GYRO compass signal(Synchronous or stepper)into digital signal
Can switch three input compass signal automatically(manual or auto)
Can connect to GPS compass directly
Can connect to Magnetic sensor directly
Compass signal can be amplified output for 16 ports
Directly drive digital repeater
Output by FURUNO radar special format AD-10
AC-DC power supply automatic switching
Ships installed with the heading transmit box will acquire a heading which never disappear.
Dimension : 400*300*150mm
Weight :10 kg
Safe distance to magnetic compass :2m
Water safe : IP54
Temperature : -20℃ to +70℃
Humidity : lower than 95%
Compass tracking rate: 25°/s
Supply : 220/110VAC,0.5A 24VDC, 8A
GYRO input : Digital Compass
Input data : Digital Electronic Compass, GPS Compass, Magnetic Compass Sensor etc., accord to RS-422 or RS-232 format
NMEA 0183, 4800 baud, no priority, 1 stop bit (HDT HDG HDM)
