Digital Repeater(DGR-160D)

Digital Repeater(DGR-160D)

Digital Repeater can automatically identify the various heading equipment output (HDT\HDM\HDG) digital heading signal, accurate display heading data, indicating heading scale; while the output NMEA-0183 signal (HDM, HDT and AD-10) supply radar, autopilot, electronic chart, AIS and other equipment.

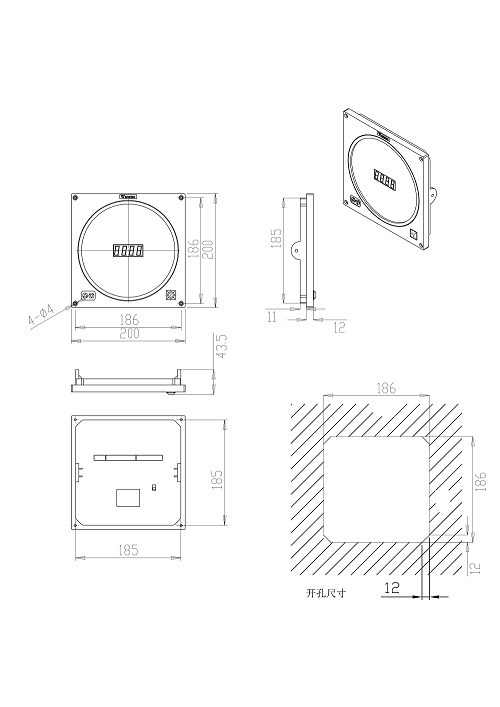

Dimension : 200*200*27mm

Weight : 1.2kg

Compass safe distance 1m

Waterproof : IP66

Working temperature : -20℃  to  +70℃

Humidity : lower than 95%

Scale ±1.5°

Scale accuracy : 1.5°

digital display accuracy : ± 0.2°

Track rate : 45°/s

Power supply : 24VDC,  0.20A

Cable length : 1.5 meters

Input data RS-422 or RS-232 NMEA 0183,4800( or 9600) baud no priority, 1 stop bit(HDT HDG HDM)


Input signal: bow signal HDT or HDM or HDG statement conforming to IEC61162-1 standard protocol, baud rate: 4800

Output signal: HDT statement according to IEC61162-1 standard protocol, baud rate: 4800

Forward transmission format:

RS422 output: Drive at least four standard IEC61162-2 input ports.

RS232 output: Drive two standard RS232 input ports.

AD-10 Output: Output conforms to Japan's special format for Noguchi.
